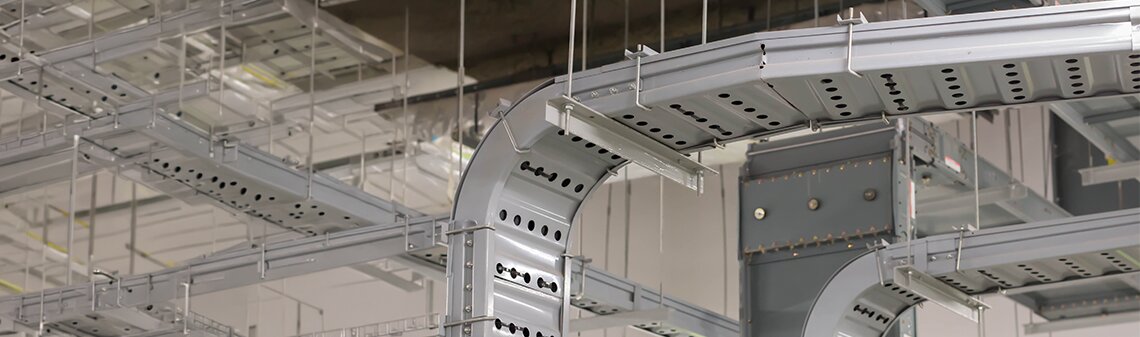

Corrosion-Resistant Cable Trays: A Buyer’s Guide for Harsh Refinery Conditions
April 14, 2026Refineries are not forgiving environments. You’re dealing with moisture, salt-laden air, hydrocarbons, chemical vapours, and temperature fluctuations, all at once. Under these conditions, cable management isn’t just about organisation; it’s about survival.
Standard cable trays weren't built for this.
And the consequences of using them in refinery conditions aren't immediate. Corrosion works quietly. It starts at joints, moves along surfaces, weakens load-bearing sections, and eventually compromises the cables it was supposed to protect. By the time it's visible, the damage is already done.
That's the problem corrosion-resistant cable trays are designed to solve. Here's what actually matters when you're choosing one.
Why Corrosion Resistance Matters in Refineries?
Oil and gas facilities subject cable tray systems to a combination of conditions that, together, are more aggressive than any single factor suggests:
- Chemical spills and vapours.
- Persistent humidity and condensation.
- Salt-laden coastal air.
- Thermal cycling from process heat.
- Hydrocarbon exposure over extended periods.
Each of these alone puts pressure on metal surfaces and coatings. Together, they accelerate degradation faster than most standard systems are rated for.
What that degradation actually produces isn't just cosmetic. It results in a higher risk of cable damage, reduced load-bearing capacity, frequent maintenance, and eventually, structural failure in a safety-critical environment.
Corrosion-resistant cable trays are built to prevent all of this. Getting the selection right is what determines whether they actually deliver on that.
Types of Corrosion-Resistant Cable Trays:
Different refinery zones demand different materials and finishes. The right choice depends heavily on the specific zone and what it's exposed to.
1. Stainless Steel Cable Trays -
Stainless steel is the default choice in zones where chemical exposure is constant and severe, such as chemical processing areas, offshore platforms, and anywhere acid contact is a possibility.
SS 316 is the grade most commonly specified in refinery applications. Its resistance to chlorides and aggressive chemicals goes meaningfully beyond what standard grades offer.
Why they work:
- High resistance to oxidation and chemical corrosion.
- Excellent durability under extreme temperatures.
- Minimal maintenance over time.
The only downside is that stainless steel can be more costly than other materials, which makes it typically a more selective choice for the highest exposure zones, rather than throughout an entire facility.
2. Hot-Dip Galvanised Cable Trays -
The hot dip galvanisation process coats steel with a layer of zinc that serves as a sacrificial coating to protect the underlying steel from corrosion.
For outdoor installations and utility areas where chemical exposure is limited, this is a cost-effective and reliable option. They tend to have a longer lifespan compared to pre-galvanised trays.
However, the caveat is that hot-dip galvanised trays are not suited for highly acidic or chemical-heavy zones.
3. FRP (Fibre-Reinforced Plastic) Cable Trays -
FRP has grown in use across refineries precisely because the corrosion problem doesn't apply to it at all. Metal alternatives will require frequent attention and upkeep, whereas FRP is easier to maintain.
Best suited for:
- In wet areas with high levels of acid
- On offshore or coastal facilities.
- Environments with significant chemical exposure.
Why they work:
- Completely non-metallic, so rusting is impossible.
- Very high chemical resistance and moisture resistance.
- Lightweight and easy to install.
One potential drawback is the fact that they provide less mechanical strength than metal trays, which should be evaluated during the design process.
Role of Coatings in Corrosion Protection:
Material selection sets the foundation. Whereas protective coatings extend the life of the material used. Coatings are a supplement to the right material choice, not a substitute for it.
Common coatings used in refinery cable tray applications:
- Epoxy coatings - for chemical resistance in exposure-heavy zones.
- PVC coatings - for moisture and salt protection.
- Powder coatings - for additional surface durability.
- Acid-resistant coatings - for the most aggressive environments.
Each creates a barrier between the tray surface and whatever it's exposed to. That barrier buys time and reduces the rate of degradation. What it doesn't do is turn an unsuitable material into a suitable one.
Stainless Steel vs FRP vs Galvanised: What Actually Works Best?
The honest answer is that no single material is the correct answer for an entire refinery.
- Highly corrosive, chemical-heavy zones call for stainless steel or FRP.
- Moderate exposure areas, such as outdoor utility runs, non-process zones, are well served by hot-dip galvanised trays at a lower cost.
- Extreme chemical environments, particularly where acids are involved, push toward FRP or specialist acid-resistant systems.
Most well-designed refinery installations use a combination. The material follows the zone, not the other way around.
Conclusion:
Cable trays in refineries don't fail because they're poorly designed. They fail because the environment they're going into was underestimated at the point of selection.
Choosing corrosion-resistant cable trays is really a process of understanding the specific conditions a system will face and then matching the material, coating, and specification to those conditions precisely.
When that's done properly, you're not just protecting cables. You're protecting uptime, reducing long-term maintenance costs, and keeping the infrastructure reliable in conditions that are genuinely unforgiving.
Elcon Global manufactures corrosion-resistant cable trays in stainless steel, hot-dip galvanised, FRP, and more, specifically for demanding industrial environments, with over three decades of experience supplying refineries and process facilities across India.
If you're specifying a system and need to get the material selection right from the start, contact us now to know more.
FAQs:
1. What type of cable tray is best for corrosive refinery environments?
Stainless steel (especially SS 316) and FRP cable trays are best suited for highly corrosive refinery environments due to their superior resistance to chemicals and moisture.
2. Why are corrosion-resistant cable trays important in oil refineries?
They prevent structural degradation, protect cables, and reduce maintenance costs in environments exposed to chemicals, moisture, and extreme temperatures.
3. What materials are commonly used for corrosion-resistant cable trays?
Stainless steel, FRP (fibreglass), and hot-dip galvanised steel are commonly used, often with protective coatings for added durability.
4. How do you choose the right cable tray for a petrochemical plant?
You evaluate environmental exposure, load requirements, installation area, and compliance with industry standards before selecting the appropriate material and coating.
5. Are FRP cable trays better than metal trays in harsh industrial environments?
FRP trays offer superior corrosion resistance, but metal trays provide higher structural strength, so the choice depends on the application.
6. What challenges affect electrical infrastructure in oil refineries?
Corrosion, chemical exposure, temperature fluctuations, and mechanical stress are the primary challenges impacting long-term performance.
